ExECElectrical equipment used near flammable gases, vapours or combustible dust cannot be selected in the same way as ordinary industrial equipment. A switch, loose terminal, hot surface or electrical arc that would be harmless in a normal location could become an ignition source in an explosive atmosphere.
Flameproof equipment is one method of controlling this risk. It does not make a process free from explosions, and it does not prevent flammable gas from entering an enclosure. Instead, a certified flameproof enclosure is designed to contain an internal explosion and prevent that explosion from igniting the surrounding atmosphere.
This guide explains the essential principles engineers, purchasers, contractors and maintenance teams should understand before selecting or working with flameproof equipment.
Important: Hazardous-area classification, equipment selection, installation and inspection should be performed or verified by competent personnel. This guide supports understanding but does not replace the applicable standards, equipment certificate, manufacturer’s instructions or statutory approvals.
What creates an explosive atmosphere?
A fire or explosion normally requires three elements:
A fuel, such as a flammable gas, vapour, mist or combustible dust
Oxygen, normally supplied by air
An effective ignition source
Possible ignition sources include:
Electrical arcs and sparks
Hot terminals caused by loose connections
Overheated components
Static-electricity discharge
Mechanical sparks
Hot surfaces
Open flames
Welding and cutting activity
Lightning
Friction or impact
An explosive atmosphere exists when a flammable substance is mixed with air in a concentration capable of propagating combustion after ignition.
Removing or controlling any part of this combination reduces the risk. Explosion-protected electrical equipment primarily helps control the possibility that the equipment itself will become an effective ignition source.
What does “flameproof” mean?
Under the IEC 60079 system, flameproof protection is identified by the letter d. IEC 60079-1 contains requirements for the construction and testing of electrical equipment protected by flameproof enclosures.
A flameproof enclosure performs three related functions:
It withstands the pressure produced if an explosive gas mixture ignites inside it.
It prevents the flame from propagating directly to the atmosphere outside.
Its certified joints or flamepaths cool escaping combustion products sufficiently to prevent ignition of the applicable external test atmosphere.
The basic operating sequence is:
Flammable mixture enters enclosure → internal ignition occurs → pressure rises → enclosure contains the pressure → hot gases pass through certified flamepaths → gases are cooled → external atmosphere is not ignited
This explains an important distinction:
A flameproof enclosure is not necessarily gas-tight. Its protection depends on controlled construction, mechanical strength and precisely designed flamepaths—not simply on sealing the enclosure.
For a deeper explanation of enclosure construction, link this section to What Is a Flameproof Enclosure?
What is a flamepath?
A flamepath is a carefully controlled joint between two parts of a flameproof enclosure. Common examples include:
Flat cover-to-body joints
Cylindrical or spigot joints
Threaded covers
Threaded cable entries
Shaft or spindle joints
Glass-to-metal joints covered by the certification design
The length, gap, surface condition and geometry of these joints are controlled by the certified design. When hot gases pass through the narrow joint, heat is transferred to the surrounding metal, reducing the ability of the escaping products to ignite the external atmosphere.
This is why flamepaths must be protected from:
Corrosion and pitting
Deep scratches or impact damage
Paint or powder coating
Abrasive cleaning
Unauthorised machining
Welding or metal filling
Incorrect gaskets
Excessive dirt or foreign material
Distortion caused by overtightening or impact
Flamepath dimensions are certificate- and design-specific. A generic permissible-gap value should never be used to approve a damaged enclosure. The applicable certificate, drawings, manufacturer instructions and repair requirements must be consulted.
Flameproof does not mean explosion-proof in every situation
The words “flameproof” and “explosion-proof” are often used interchangeably in commercial discussions, but equipment suitability cannot be established from either word alone.
The complete equipment marking and certificate must be checked for:
Type of protection
Gas or dust application
Equipment group
Temperature class
Equipment Protection Level
Ambient-temperature range
Electrical ratings
Ingress protection
Certificate conditions
Approved cable-entry arrangement
Any specific conditions of use
A flameproof enclosure certified for a particular gas group, temperature class and ambient range should not be assumed suitable for every hazardous location.

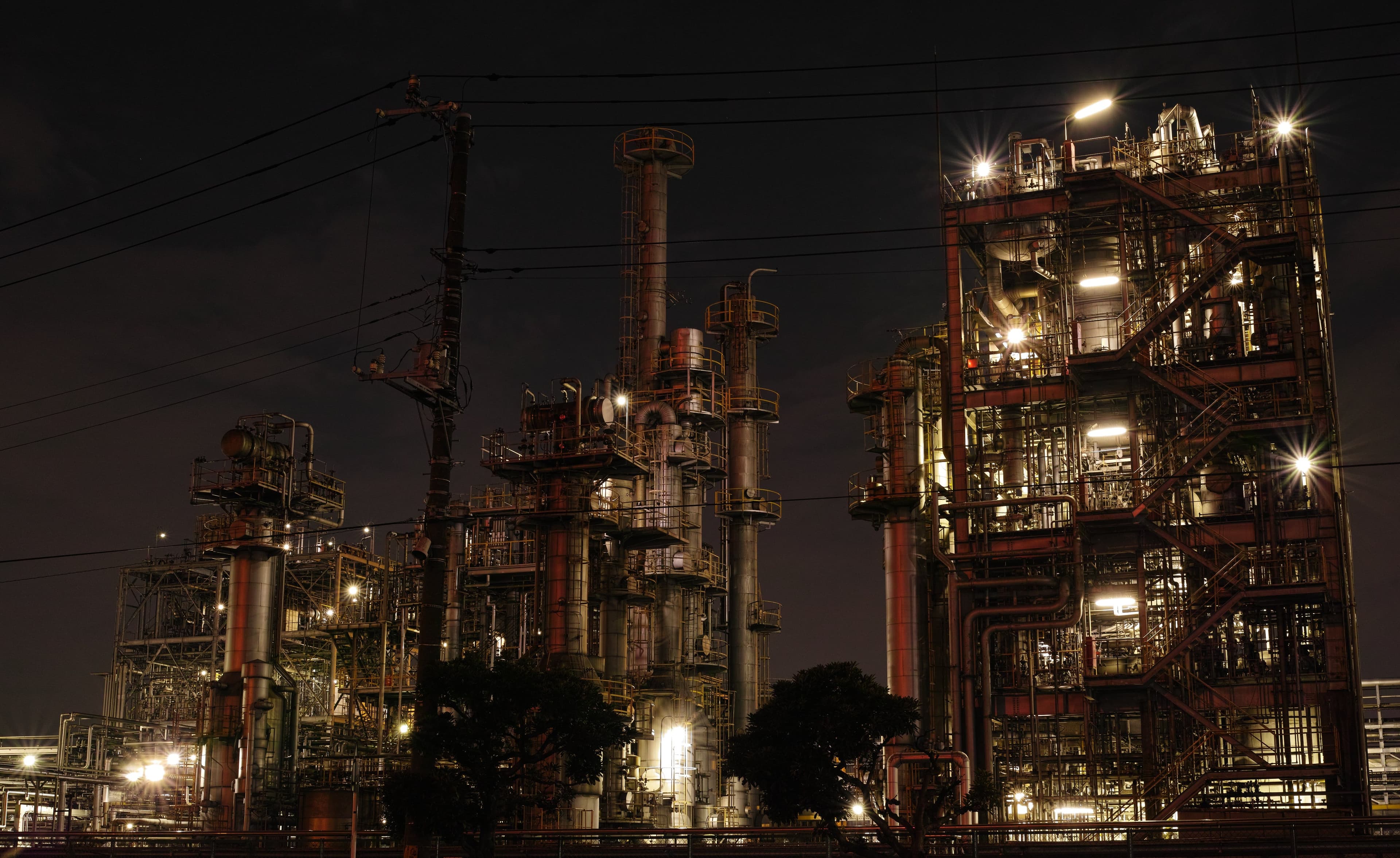

Understanding hazardous-area zones
Hazardous areas for gases and vapours are classified according to how frequently an explosive gas atmosphere is expected to occur and how long it may remain present.
Zone 0
An area in which an explosive gas atmosphere is present continuously, for long periods or frequently.
Examples may include the vapour space inside certain process vessels or tanks, depending on the material and operating conditions.
Zone 1
An area in which an explosive gas atmosphere is likely to occur occasionally during normal operation.
Examples can include areas around regularly operated sampling points, filling connections, vents or pump seals where a flammable release may occur during normal activity.
Zone 2
An area in which an explosive gas atmosphere is not likely to occur during normal operation and, if it does occur, is expected to exist only briefly.
Examples may include areas around closed process systems where a release would normally result from an abnormal leak rather than routine operation.
These definitions are based on frequency and duration—not simply distance from the process. Ventilation, release rate, gas properties, operating pressure and physical obstructions can all affect the zone and its extent.
The official UK HSE guidance provides the same qualitative Zone 0, Zone 1 and Zone 2 definitions and warns that commonly quoted hourly limits have not been formally adopted as universal definitions.
For a detailed explanation, link this section to Hazardous Area Classification: Zone 0, Zone 1 and Zone 2 Explained.
What about combustible dust?
Combustible-dust areas use:
Zone 20
Zone 21
Zone 22
Gas protection and dust protection must not be treated as interchangeable. Equipment intended for combustible-dust atmospheres normally carries a dust marking and may use protection by enclosure “t”. An Ex d gas marking alone does not establish suitability for combustible dust.
Equipment Protection Levels
Equipment Protection Level, or EPL, indicates the level of protection provided by the equipment.
For gas atmospheres:
Ga: Very high level of protection; may be used in Zone 0, Zone 1 and Zone 2 when completely suitable for the application
Gb: High level of protection; normally associated with Zone 1 and Zone 2
Gc: Enhanced level of protection; normally associated with Zone 2
A common flameproof marking is Ex db … Gb. Equipment marked only for EPL Gb should not be installed in Zone 0.
Always evaluate the complete equipment marking. The zone-to-EPL relationship does not override limitations stated on the certificate.
Understanding gas groups
Industrial gases and vapours under Group II are commonly divided into IIA, IIB and IIC.
IIA
Representative gases commonly include propane. IIA generally represents the least demanding of the three common Group II subdivisions from an enclosure flame-transmission perspective.
IIB
Ethylene is commonly used as a representative IIB gas. IIB equipment is subject to more demanding construction requirements than comparable IIA equipment.
IIC
Hydrogen and acetylene are commonly associated with IIC. IIC represents the most demanding common Group II subdivision for flameproof enclosure design.
From the gas-group perspective, properly certified IIC equipment can generally cover IIB and IIA applications. Similarly, IIB equipment can generally cover IIA. This does not mean that gas group alone establishes complete suitability; temperature class, EPL, ambient range, certificate conditions and the application must also match.
Understanding temperature classes
Electrical equipment can become an ignition source even without producing a spark. A sufficiently hot external surface can ignite a surrounding gas or vapour.
Temperature classes indicate the maximum surface temperature of the equipment under the relevant rated and fault conditions:
Temperature class | Maximum surface temperature |
|---|---|
T1 | 450°C |
T2 | 300°C |
T3 | 200°C |
T4 | 135°C |
T5 | 100°C |
T6 | 85°C |
A higher T-number represents a lower permitted surface temperature. Therefore, T6 equipment has a stricter surface-temperature limit than T4 equipment.
Simple temperature-selection example
Assume the hazardous-area documentation identifies a gas or vapour requiring equipment with a T4 temperature classification.
Suitable options may include:
T4
T5
T6
Unsuitable options would include:
T1
T2
T3
The equipment’s permitted maximum surface temperature must remain below the relevant ignition-temperature requirement.
Ambient temperature is also important. Equipment certified for a standard ambient range must not automatically be used in a location reaching 55°C or 60°C. A higher ambient temperature can raise enclosure and component temperatures and may change the permitted temperature class or electrical loading.
How to read a flameproof marking
Consider the following simplified marking:
Ex db IIC T6 Gb IP66
Ex
Indicates that the equipment incorporates a type of explosion protection intended for an explosive atmosphere.
db
The letter d identifies protection by a flameproof enclosure. The letter b identifies the protection level associated with the “db” construction.
IIC
Identifies the gas subgroup for which the equipment has been evaluated. IIC includes demanding gases such as hydrogen and acetylene from the flame-transmission testing perspective.
T6
Indicates a maximum equipment surface temperature of 85°C under the certified conditions.
Gb
Indicates a high Equipment Protection Level for gas atmospheres, normally associated with Zone 1 and Zone 2 applications.
IP66
Describes protection against solid-object and water ingress under the IP system. It is an environmental enclosure rating and is separate from the Ex protection concept.
The complete nameplate may also contain:
Manufacturer name
Model or type number
Certificate number
Serial number
Electrical rating
Ambient-temperature range
Manufacturing year
Statutory approval or licence markings
An “X” suffix identifying specific conditions of use
A “U” suffix identifying an Ex component that may require further assessment before use as complete equipment
Do not approve equipment from a partial marking copied into a purchase order. Check the actual nameplate, certificate and certificate schedule.
IP rating and flameproof protection are not the same
An IP66 enclosure may provide strong protection against dust and water, but that does not make it flameproof.
Similarly, an Ex d enclosure must still have an appropriate IP rating when exposed to rain, washdown, dust or other environmental conditions.
These ratings answer different questions:
Ex marking: Can the equipment avoid igniting the specified explosive atmosphere under its certified conditions?
IP rating: How well does the enclosure resist access, solid particles and water?
Both must be selected correctly.
Practical equipment-selection example
Consider a flameproof junction box required near a solvent-transfer pump.
The hazardous-area documentation states:
Area: Zone 1
Gas group: IIB
Required temperature class: T4
Maximum ambient temperature: 50°C
Outdoor installation
Supply: 415 V AC
Cable type and size defined by the electrical design
A possible equipment specification would require:
EPL Gb or another protection level permitted for the classified area
Gas group IIB or IIC
Temperature class T4, T5 or T6
Certified ambient range that includes 50°C
Electrical rating suitable for the circuit
Appropriate IP rating for outdoor exposure
Enclosure material suitable for the corrosive environment
Certified cable glands and stopping plugs compatible with the enclosure entries
Terminal capacity suitable for the conductor size and number of conductors
Adequate internal space to avoid unsafe conductor bending or overcrowding
Verified earth-continuity provisions
Certificate conditions compatible with the intended installation
Selecting an Ex db IIC T6 Gb enclosure may satisfy the basic zone, gas-group and temperature-class requirements, but the engineer must still confirm its ambient rating, entries, terminals, electrical loading, IP rating and certificate conditions.
Link this example to the ExEC flameproof junction-box range and to How to Select a Flameproof Junction Box.
Before purchasing flameproof equipment
Confirm the following information before requesting a quotation or issuing a purchase order:
Is the hazard a gas, vapour, dust or a combination?
What is the hazardous-area zone?
What gas or dust group applies?
What temperature class or maximum surface temperature is required?
What EPL is required?
What are the minimum and maximum ambient temperatures?
Is the location indoor, outdoor, corrosive or exposed to washdown?
What supply voltage, current and frequency are required?
What cable types and cable sizes will be used?
How many entries are needed?
What thread type and entry size are required?
Are barrier glands required by the design, certificate or installation standard?
What terminals and internal components are required?
Does the certificate cover the exact model and configuration being supplied?
Are there special conditions identified by an “X” suffix?
Are applicable Indian statutory approvals and certification requirements satisfied?
A product description such as “flameproof junction box, 12-way” is not enough for responsible selection.
Installation checklist
Before energising the equipment, check that:
The equipment marking matches the hazardous-area documentation
The certificate covers the supplied model
The ambient-temperature range is suitable
The enclosure, glass and threaded parts are undamaged
Certified fasteners of the correct type, grade and length are fitted
All required cover bolts are installed and tightened correctly
Flamepaths are clean and free from paint, corrosion and mechanical damage
Cable glands match the cable type, entry thread and certification requirements
Cable armour is terminated correctly where applicable
Unused entries are closed with suitable certified stopping plugs
Adaptors and reducers are permitted and correctly certified
Conductors are terminated securely
The enclosure is not overcrowded
Internal heat dissipation remains within the approved configuration
Internal and external earthing arrangements are complete
The enclosure’s IP sealing arrangements are correctly installed
No unauthorised drilling, tapping or machining has been performed
Labels and warning plates remain visible
The installation is included in the hazardous-area equipment register
Equipment should not be opened while energised where a hazardous atmosphere may be present. Follow the warning label, isolation procedure, gas-testing requirements, permit-to-work system and manufacturer’s instructions.
Inspection and maintenance checklist
IEC 60079-17 addresses inspection and maintenance of electrical installations in explosive atmospheres. Inspection programmes may include visual, close and detailed inspections depending on the circumstances and identified risks.
Check periodically for:
Missing, loose or substituted cover bolts
Corrosion on the enclosure or flamepaths
Scratches, pitting or deformation of joint surfaces
Cracked or damaged viewing glass
Loose cable glands
Incorrect or missing stopping plugs
Damaged cables or exposed armour
Water or dust ingress
Deteriorated seals
Loose terminals or signs of overheating
Damaged earth conductors
Illegible nameplates
Unauthorised modifications
Equipment operating outside its rated ambient temperature
Changes to the surrounding process or hazardous-area classification
Over-painting that hides labels, joints or fasteners
Inspection results should be documented so defects, corrective actions and equipment history can be traced.
If a flamepath is damaged, do not repair it through uncontrolled filing, grinding, welding or metal filling. Repair and overhaul of Ex equipment should follow the applicable requirements, including IEC 60079-19, the certification documents and the manufacturer’s instructions.
Common flameproof-equipment mistakes
Treating an IP-rated enclosure as flameproof
IP65, IP66 or IP67 describes ingress protection. It does not prove that the enclosure can withstand an internal explosion or prevent flame transmission.
Drilling additional cable entries at site
Adding or changing holes can alter the certified design, wall thickness, entry spacing and mechanical strength. Only modifications explicitly permitted by the certificate and manufacturer should be considered.
Using ordinary industrial cable glands
The cable gland is part of the protection arrangement. Its protection concept, gas group, thread, sealing method and cable compatibility must match the application.
Painting flamepaths
Paint or powder coating on a flamepath can interfere with the controlled joint and make proper inspection difficult.
Replacing bolts with visually similar hardware
Bolt material, grade, length and thread engagement can affect the enclosure’s ability to withstand pressure. Use only the specified fasteners.
Ignoring ambient temperature
A T6 marking does not automatically apply at every ambient temperature. Always check the marked ambient range and certificate schedule.
Assuming IIC solves every selection problem
IIC may cover less demanding gas groups, but it does not automatically satisfy the required zone, EPL, temperature class, ambient range, electrical rating or certificate conditions.
Installing gas-certified equipment in a dust zone
Gas and dust atmospheres use different markings and protection considerations. Verify that the equipment carries the required dust certification.
Modifying internal components
Adding terminals, relays, drivers, power supplies or other heat-producing components may invalidate the thermal assessment and certified configuration.
Opening equipment without proper isolation
A flameproof enclosure may contain sparking or hot components. Follow the required isolation, waiting-time, gas-testing and permit procedures before opening it.
Key standards to know
The main IEC 60079 documents relevant to this subject include:
IEC 60079-0: Equipment—general requirements
IEC 60079-1: Equipment protection by flameproof enclosures “d”
IEC 60079-10-1: Classification of areas—explosive gas atmospheres
IEC 60079-10-2: Classification of areas—explosive dust atmospheres
IEC 60079-14: Electrical installations design, selection and erection
IEC 60079-17: Electrical installations inspection and maintenance
IEC 60079-19: Equipment repair, overhaul and reclamation
IEC 60079-31: Equipment dust ignition protection by enclosure “t”
For Indian installations, confirm the currently applicable IS/IEC editions, BIS requirements, statutory approvals, project specifications and certificate conditions. Standards and regulations can be revised, so the edition stated on the equipment certificate and applicable project documentation must be checked.
Frequently asked questions
Does flameproof equipment prevent an explosion inside the enclosure?
No. The protection concept assumes that an internal ignition may occur. The enclosure is designed to contain its effects and prevent ignition from propagating to the applicable surrounding explosive atmosphere.
Is a flameproof enclosure completely sealed?
Not necessarily. Flameproof protection depends on enclosure strength and certified flamepaths. Environmental sealing is addressed separately through measures such as an IP rating.
Can Ex db equipment be used in Zone 2?
Equipment with EPL Gb is normally suitable for Zone 1 and Zone 2, subject to the complete marking, certificate and application requirements.
Can Ex db equipment be used in Zone 0?
Standard Ex db equipment carrying EPL Gb is not intended for Zone 0. Zone 0 normally requires equipment providing EPL Ga or another solution specifically certified for that location.
Is IIC equipment always better?
IIC is more demanding from a gas-group construction perspective, but “better” depends on the complete application. Zone, temperature class, ambient range, material, electrical rating, IP protection and certificate conditions remain essential.
Can a damaged flamepath be polished or machined?
Not without an authorised assessment and repair procedure. Uncontrolled repair can change critical dimensions or surface conditions and invalidate the protection.
Final takeaway
Correct flameproof selection is not based on enclosure size or the word “flameproof” alone.
A safe specification must match:
Zone + EPL + gas group + temperature class + ambient range + certificate + cable-entry system + electrical duty + environmental conditions
The equipment must then be installed, inspected and maintained without changing the certified protection features.
For application-specific selection, consult the ExEC Engineering Team with the hazardous-area classification, gas group, temperature class, ambient range, electrical details and required cable entries.
Technical references
IECEx, Standards Operated by the IECEx: https://www.iecex.com/resources-and-news/standards/
IEC 60079-1, Equipment protection by flameproof enclosures “d”
IEC 60079-10-1, Classification of areas—explosive gas atmospheres
IEC 60079-14, Electrical installations design, selection and erection
IEC 60079-17, Electrical installations inspection and maintenance
IEC 60079-19, Equipment repair, overhaul and reclamation
HSE, Hazardous Area Classification and Control of Ignition Sources: https://www.hse.gov.uk/comah/sragtech/techmeasareaclas.htm
IECEx, Overview of Explosion Protection Techniques: https://www.iecex.com/assets/Uploads/D2S2-Ex-Protection-Techniques-BARTEC.pdf
Written by: ExEC Engineering Team, the engineering and manufacturing team at Explosion Proof Electrical Control.
Technical review: Feneel Patel, B.Tech. Electrical Engineering, Explosion Proof Electrical Control.
Last reviewed: 14 September 2026.
